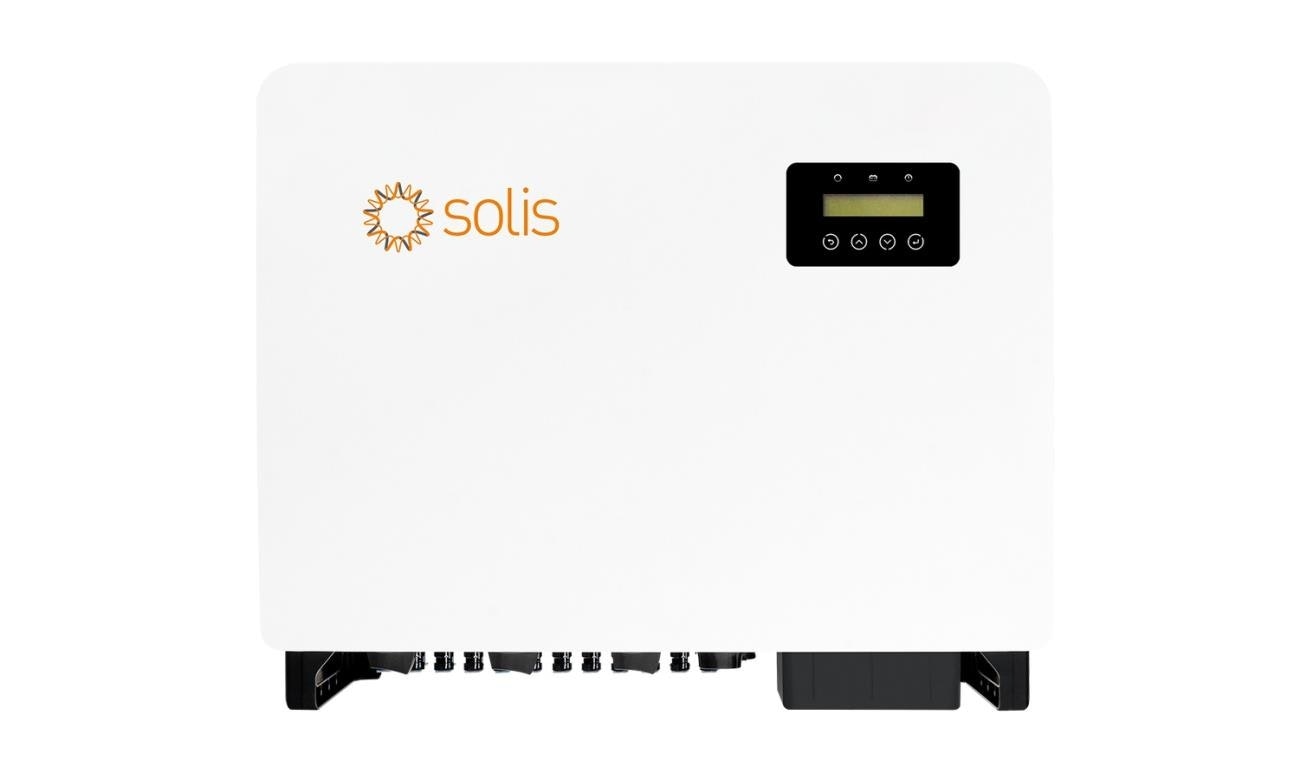

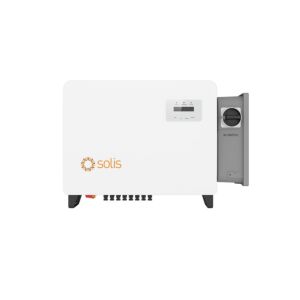

Solis On Grid Inverters

Supported Devices

Device TypeModbus TCP (Ethernet)RS485Curtailment
S5-GR3P(3-20)K✅ (only with Solis data logger)✅✅
S5-GC(25-40)K
S5-GC(50-60)K
S5-GC80K
S5-GC(100-110)K
S6-GR1P(0.7-3.6)K-M
S6-GR1P(2.5-6)K
S6-GR1P(7-8)K02-NV-YD-HC
S6-GC3P(40-60)K-NV-ND
S6-GC(80-125)K
S6-GC3P150K07-NV-ND
S6-GU350K-EHV
100-125K G5experimental
Solis-80K-5G-PRO✅ (only with Solis data logger)
Solis-255K-EHV-5G-PLUS

Wiring

RS485

NOTE: RS485 Device Addresses
  • You MUST give each device on the RS485 bus a unique address. Check the manual of the device on how to do this.
  • Use lower addresses first (1, 2, ...) because the SmartgridOne Controller will find them faster!
  • For each device, it is generally recommended to stick with the factory default baud rate, parity, and stop bits. The SmartgridOne Controller will scan on those first.
ModelPage
S5-GR3P(3-20)KWiring configuration for S5/S6 Series
S5-GC(25-40)K
S5-GC(50-60)K
S5-GC80K
S5-GC(100-110)K
S6-GR1P(0.7-3.6)K-M
S6-GR1P(2.5-6)K
S6-GR1P(7-8)K02-NV-YD-HC
S6-GC3P(40-60)K-NV-ND
S6-GU350K-EHV
100-125K G5Wiring configuration for Industrial PV installation
Solis-80K-5G-PRO
Solis-255K-EHV-5G-PLUS

By default, the inverter is set to address 1. This can be changed via the display of the inverter. You can find the procedure in chapter 7.3.2 of the manual.
