Specifications

Additional I/O's

All SmartgridOne models are extendible with additionaly I/O's through the accessories. See accessories for more information.

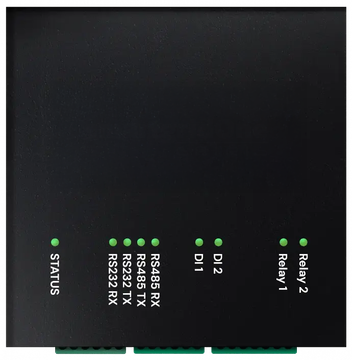

Model OM1

SmartgridOne (Model OM1)

Property	Value
Casing material	Aluminum
Dimensions	113mm x 84mm x 25mm
Weight	272g
Ambient temperature	-10°C to +60°C
Humidity	5% - 95% non-condensing
Power supply	12Vdc, 2A via 230Vac adaptor
Interfaces	1x RS485 2x Digital input (5-50Vdc) suitable for S0 pulse counting 1x 12Vdc out, max. 60mA 2x Relay (max 1A, 50Vdc/30Vac) RJ45 gigabit ethernet
Supported device types	EV charging stations Energy meters Battery systems PV inverters Heat pumps and Switched loads
Appliance class	IEC 61140 class III appliance
Pollution degree	IEC 60664 pollution degree 3
Altitude	0 – 2000m
IP rating	IP2X

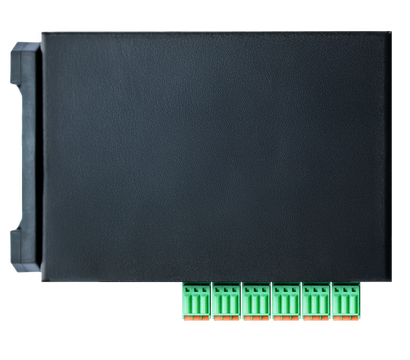

Model EDS

SmartgridOne (Model EDS)

Property	Value
Casing material	Aluminum
Dimensions	102mm x 73mm x 35.2mm (DIN-rail bracket and antenna not included)
Weight	500g
Ambient temperature	-25°C to +60°C
Humidity	5% - 95% non-condensing
Power supply	12V/2A power adaptor
Interfaces	4x RS485 RJ45 gigabit ethernet
Supported device types	EV charging stations Energy meters Battery systems PV inverters Heat pumps and Switched loads
Appliance class	IEC 61140 class III appliance
Pollution degree	IEC 60664 pollution degree 3
Altitude	0 – 2500m
IP rating	IP3X

Model M1S

SmartgridOne (Model M1S)

Property	Value
Casing material	Plastic
Dimensions	120mm x 90mm x 30mm
Weight	150g
Ambient temperature	-20°C to +70°C
Humidity	10% - 90% non-condensing
Power supply	5V/3A power adaptor
Interfaces	3x USB port RJ45 gigabit ethernet
Supported device types	EV charging stations Energy meters Battery systems PV inverters Heat pumps and Switched loads
Appliance class	IEC 61140 class III appliance
Pollution degree	IEC 60664 pollution degree 3
Altitude	0 – 2500m
IP rating	IP3X
