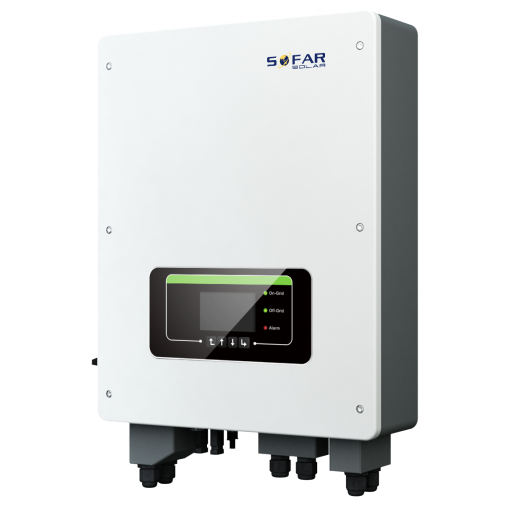

Sofar TL-G3 和 TLM/X-G3 系列逆变器
支持的设备
| Device Type | Modbus TCP (Ethernet) | RS485 | Curtailment |
|---|---|---|---|
| ... | ✅ | ✅ | ✅ |
警告
- 大多数设备可以使用 modbus TCP 进行通信。对于系列 "SOFAR 1...40KTL"，这并不适用。
- 一些逆变器需要特定的固件，这仅限于某些分销商。如有疑问，请咨询您的分销商。
TODO: 完成表格
接线
以太网
使用 "SOFAR SOLAR ETHERNET STICK LSE3" 将逆变器连接到您的互联网网络。
有关正确的以太网接线：请遵循 以太网接线指南。
RS485
...TL-G3 & G1 & G2

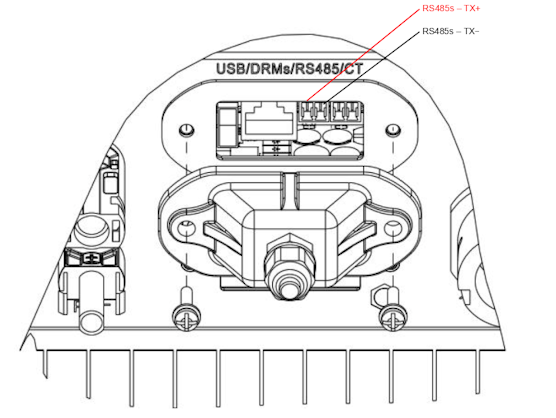

RS485 Wiring
- For correct RS485 wiring: Follow the guidelines for RS485 wiring.
- If the wiring shown in the table below is incorrect, please let us know.
- There is no general consensus in the industry about the usage of A and B for the RS485 polarity, so it may be counterintuitive and opposite of what you might expect for some devices.
| Device | SmartgridOne Controller model OM1 | SmartgridOne Controller model IG8 | RS485-USB converter | RS485-Ethernet converter |
|---|---|---|---|---|
| RS485s TX+ | RS485 A | RS485_POS | RS485 A | TX+ |
| RS485s TX- | RS485 B | RS485_NEG | RS485 B | TX- |
| N/A | RS GND | GND | Not available | G |
...TLX & TLM

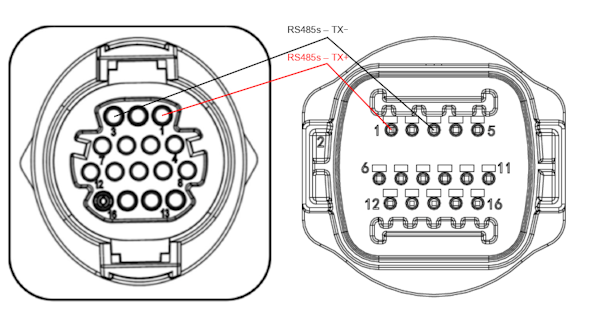

RS485 Wiring
- For correct RS485 wiring: Follow the guidelines for RS485 wiring.
- If the wiring shown in the table below is incorrect, please let us know.
- There is no general consensus in the industry about the usage of A and B for the RS485 polarity, so it may be counterintuitive and opposite of what you might expect for some devices.
| Device | SmartgridOne Controller model OM1 | SmartgridOne Controller model IG8 | RS485-USB converter | RS485-Ethernet converter |
|---|---|---|---|---|
| RS485s TX+ (引脚 1) | RS485 A | RS485_POS | RS485 A | TX+ |
| RS485s TX- (引脚 3) | RS485 B | RS485_NEG | RS485 B | TX- |
| N/A | RS GND | GND | Not available | G |
配置
RS485
NOTE: RS485 Device Addresses
- You MUST give each device on the RS485 bus a unique address. Check the manual of the device on how to do this.
- Use lower addresses first (1, 2, ...) because the SmartgridOne Controller will find them faster!
- For each device, it is generally recommended to stick with the factory default baud rate, parity, and stop bits. The SmartgridOne Controller will scan on those first.
外部逆变器控制必须在逆变器的液晶屏幕的配置菜单中激活。
- 短按一下下方的按钮。
- 您会看到 "1. 进入设置"，长按下方的按钮 2 秒进入设置。
- 循环浏览设置，直到看到：
- Modbus 地址或
- 设置通信协议
- 长按下方的按钮 2 秒以设置地址。
- 将地址设置为所需的值。
